Bleu Hyperbolique won the grand prix du jury in La preuve par l’image, the CNRS’s annual competition inviting researchers in France to submit striking images from their work; a jury picks around twenty laureates from nearly two hundred entries. It is joint work with Rémi Coulon, Sabetta Matsumoto and Henry Segerman, and shows the view inside a finite-volume hyperbolic 3-manifold.

The prize was announced in September 2022 and carried in CNRS le Journal. The CNRS then included the image in a traveling exhibition of twenty panels, produced in both French and English, which it also made available to download from its médiathèque.

The Mathematics

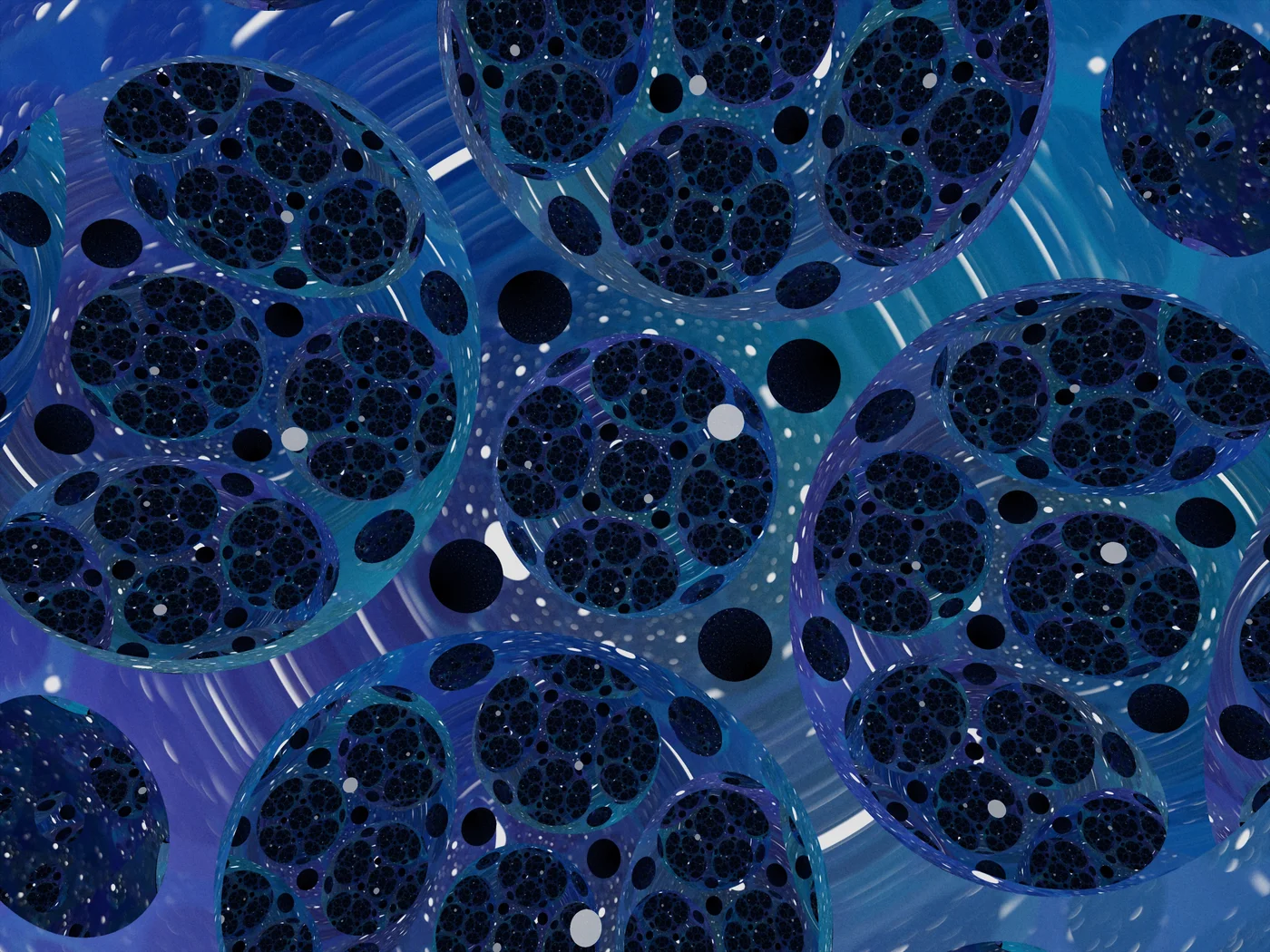

This is a tiling of hyperbolic 3-space arising from an orbifold with two cusps, whose fundamental domain is an ideal cube in ℍ³. We have drawn the edges of the cube and punctured each ideal vertex with a horoball — the circular holes visible where the edges meet.

Technique

We wrote a ray tracer that traces geodesics in the hyperboloid model of ℍ³ inside Minkowski 4-space. Restricting to a single fundamental domain, we apply the required side-pairing transformation each time a ray leaves one face, re-entering through another.
